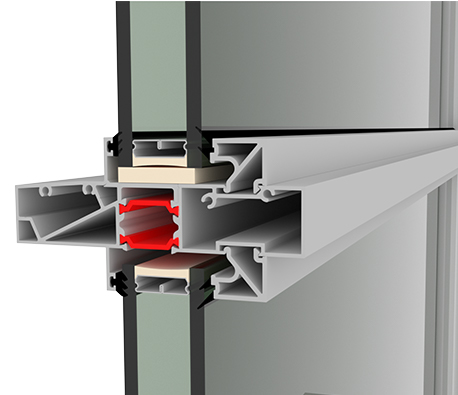

MC5 is the only true unitized rain screen window wall system on the market today. Thanks to a series of five chambers within the system, MC5 completely eliminates external moisture penetration. Plus, the introduction of the I-Strut thermal break 85% wider than the standard PVC break significantly reduces heat and cold transfer.

The U-Value and condensation index are both improved by 50% over traditional window wall systems. In fact, tests show that with the introduction of high-performance Low-E glazing and a warm-edge spacer, the window can achieve a U-Value of 0.29 BTU/hr-sf F.

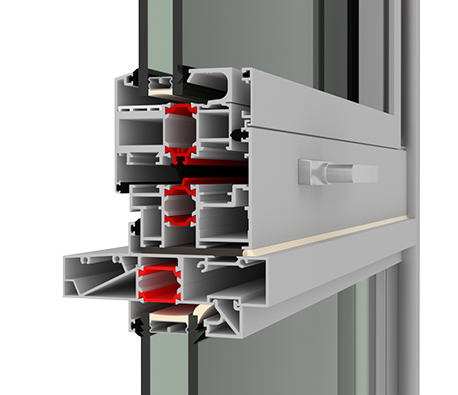

The MC5 new cam handle operating mechanism for awnings and casement features a unique modern look designed specially to meet with architecture requirements. With a thermally broken frame and sash for superior air, water, and structure performance, its EPDM gaskets offer three lines of defense. The rain screen design and multi-point locking mechanism make this cam handle ideal for residential and condominium projects.

Choose from a handle position at the bottom or side, for added convenience, and ADA handles also available. The cam handle awning and casement operating mechanism allows for full sash opening at 90 degrees for easy site installation and service. All corners are mitered and well-sealed with silicone, with heavy duty corner keys crimped at each corner.

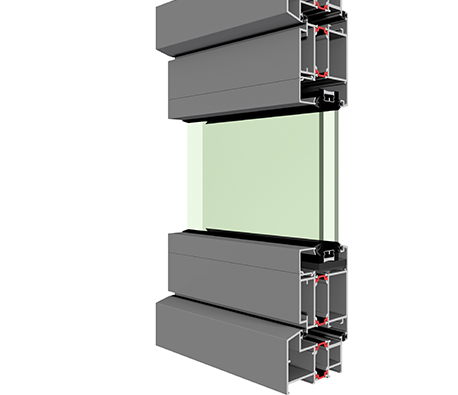

MC5 single swing-out doors feature a thermally broken frame and sash for superior air, water and structure performance. Their rain screen design and multi-point locking mechanism makes these doors ideal for residential and condominium projects. The doors come with two to three adjustable-roller locking pints plus a dead bolt. For taller doors, the number of locking points can be increased. The standard door comes equipped with a lever handle, three pairs of standard-duty hinges, and a stainless steel door limiter at the head, allowing for control of the door speed at opening. The handles and cylinder caps are painted in a powder-coating silver colour. European-style cylinders are used with keys from the outside, and thumb-turn from the inside. A half cylinder with thumb-turn is also available.

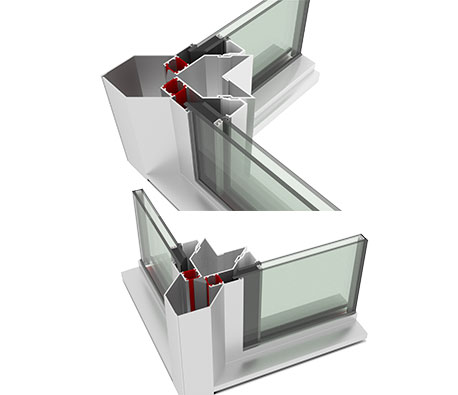

The new MC5 Miter 90º corner was created to match modern architecture trends and provide a sharp, clean design. Use the Miter 90º corner to enjoy larger views from the interior and slim, precise edges on the exterior.

Equipped with three sealing gaskets for superior air, water, and structure performance in its rain screen design, the MC5 Miter 90º corner gives architecture the freedom to showcase contemporary, sharp lines at the corners of structures.

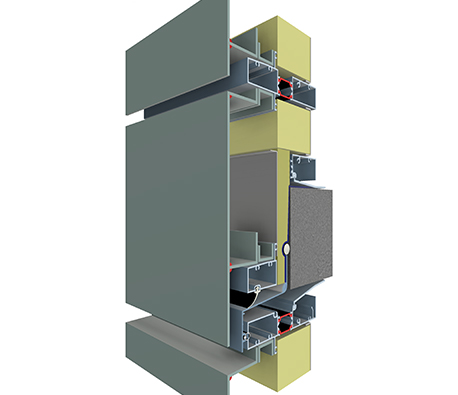

The innovative, new MC5 Tribeca metal panel system redefines precision. Giving architecture the freedom to demonstrate crisp, sharp lines for a sophisticated and modern look, the MC5 system’s rain screen design is also equipped with multiple hidden sealing gaskets for superior air, water, and structure performance.

In addition to its stunning sharp edges, you can easily hide unwanted horizontal lines by using the Tribeca system at the bypass area.
